Automatic Cut-to-Length Line
An automatic cut-to-length line uses recipes, coordinated drives and mechanized material handling to reduce manual threading, setup and stacking. The valuable automation level is the one that matches product variety, output, labor and safe recovery needs.
Review Automation ScopeDECISION FRAME
What this page is designed to resolve
This page supports Equipment purchase and technical comparison. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes automatic CTL line, automatic cut to length machine. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- Automate the repeatable sequence
- Recipes need controlled process data
- Automatic handling has physical limits
- Measure return on automation
- FAT the complete sequence
ENGINEERING DETAIL
Automatic Cut-to-Length Line: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
Automate the repeatable sequence
Coil loading, mandrel expansion, head preparation, guiding, roll-gap setup, length recipe, cutting and stacking can be coordinated to different degrees. The specification should name each automatic function instead of using a single automation label.
Recipes need controlled process data
Stored grades, thicknesses, widths, lengths and leveler settings provide repeatable starting points. Access levels, change history and validation reduce accidental changes to critical parameters.
Automatic handling has physical limits
Bent coil heads, damaged edges, very short sheets or surface-sensitive products may need special devices or supervised intervention. Recovery modes must control hazardous motion while giving operators a practical method.
Measure return on automation
Compare changeover minutes, operators per shift, scrap, stack quality, availability and maintenance skill. Automation should remove a defined constraint rather than add complexity without a production benefit.
FAT the complete sequence
Demonstrate recipe recall, automatic threading steps, permissives, fault messages, stack change, manual fallback and recovery from agreed abnormal conditions with representative material.
ENGINEERING INPUTS
Data required for a defensible automatic cut to length line
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Automatic functions by station | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Recipe and access management | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Product-mix and changeover frequency | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Operator intervention points | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Plant data interfaces | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Safe recovery and fallback modes | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Automation FAT scenarios | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.

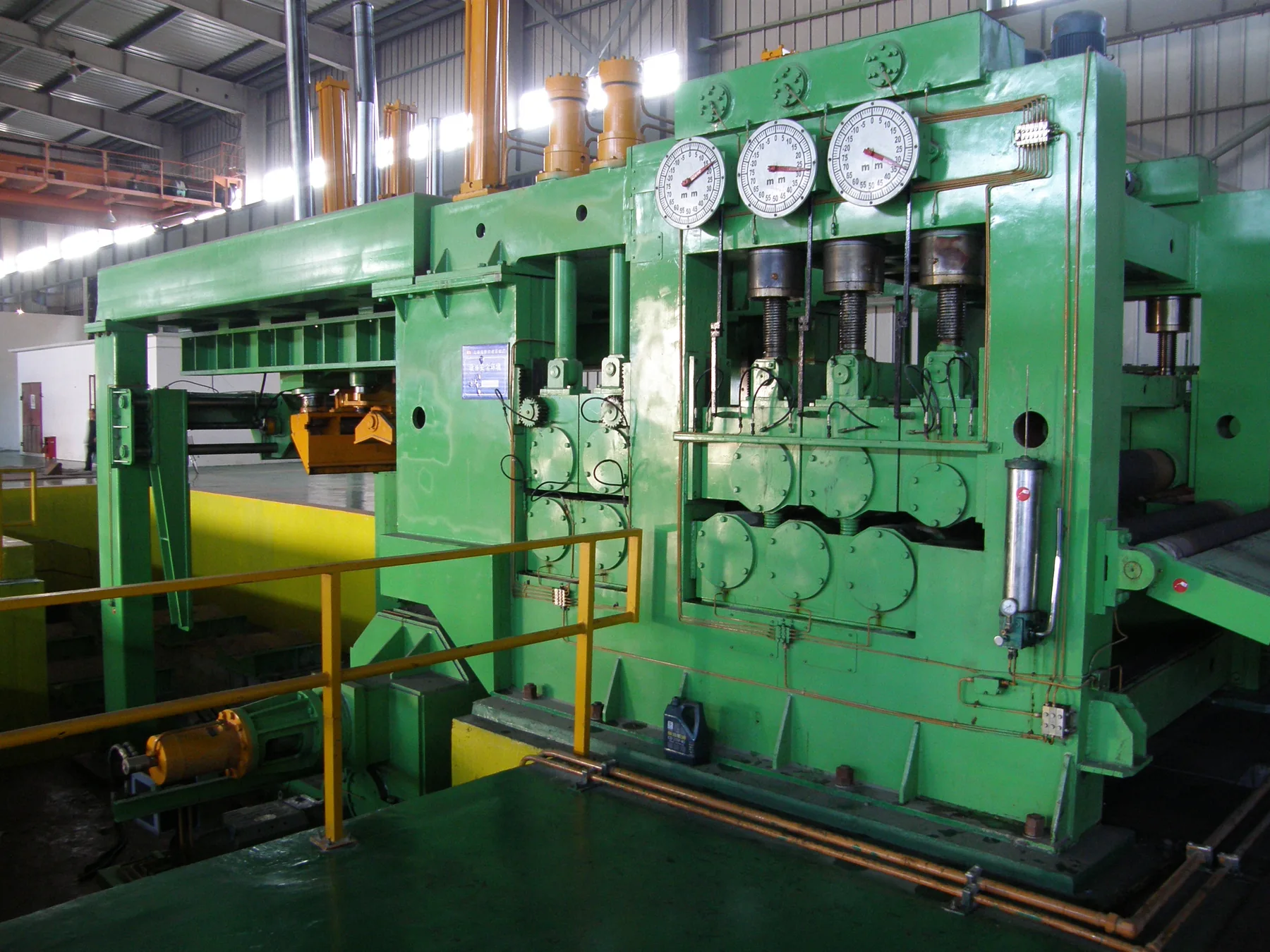

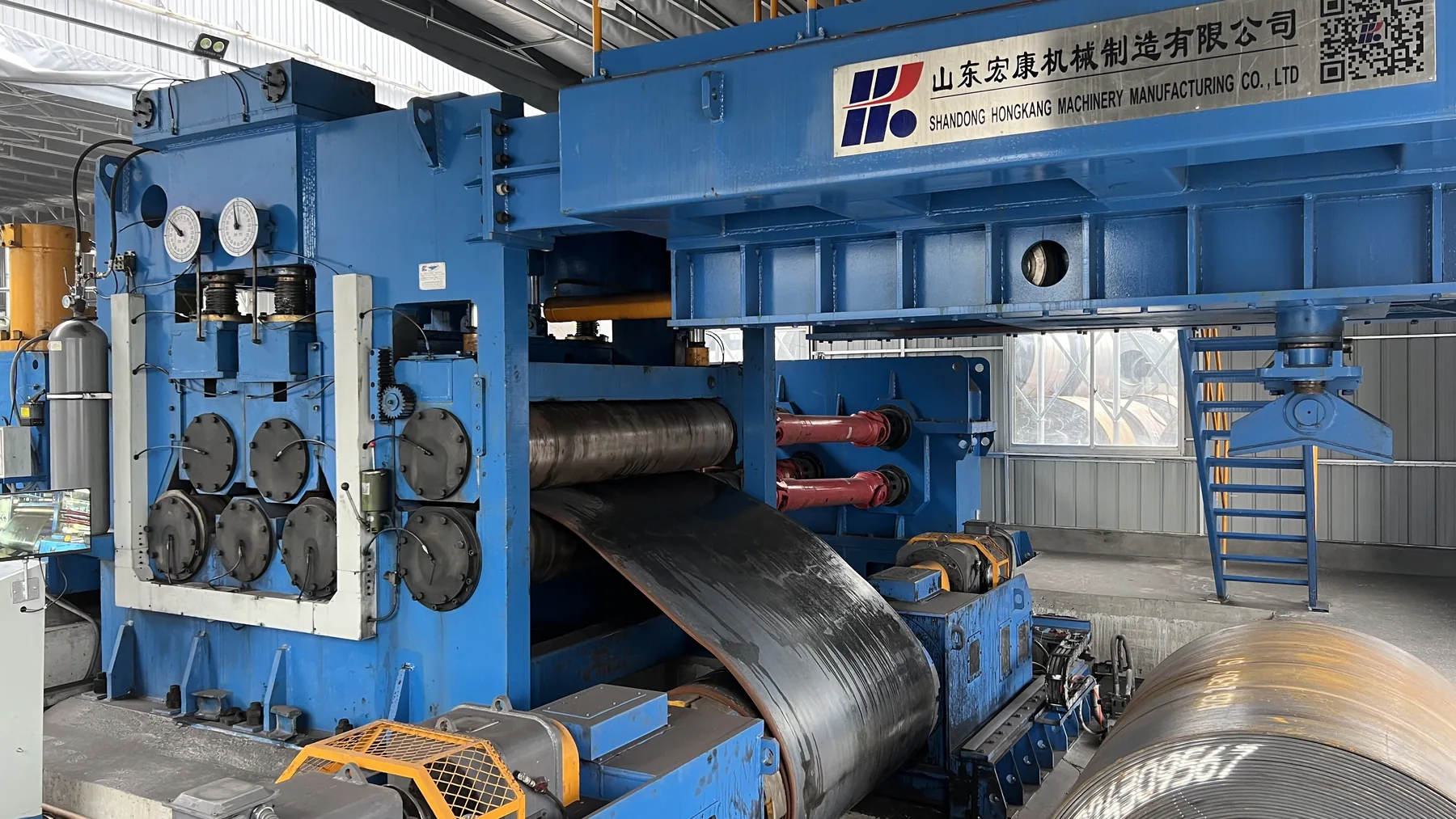

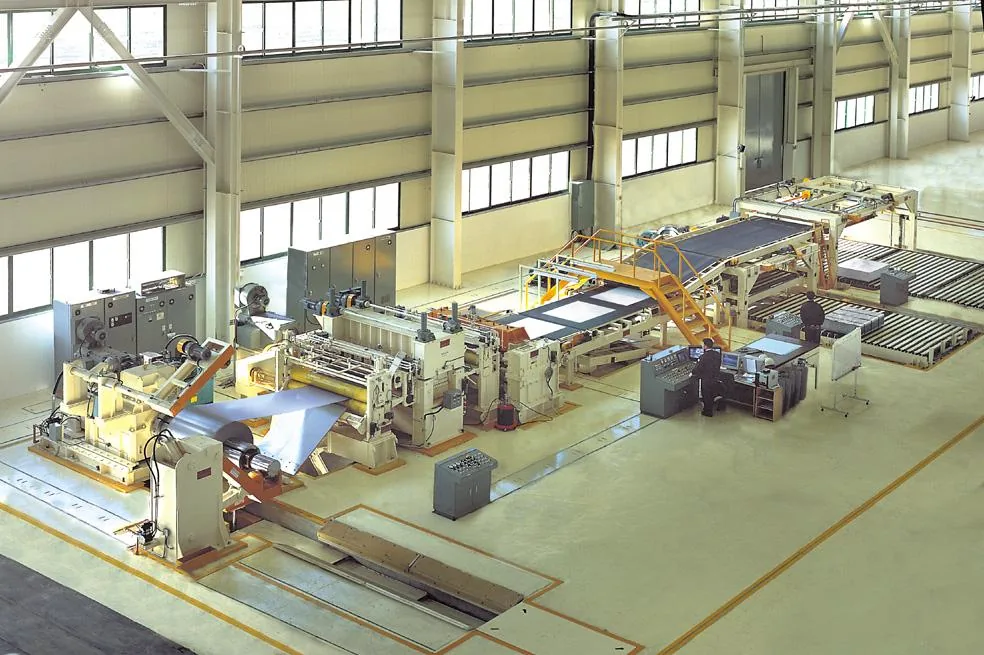

PROJECT-SOURCED VISUAL EVIDENCE
Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about automatic cut to length line
Does automatic mean unattended?
No. Coil processing still requires trained supervision, quality checks, material handling and safe response to abnormalities.
Can MES data be connected?
Interfaces can be defined for orders, recipes, production results and alarms when the plant protocol and data ownership are agreed.
Which automation gives the fastest payback?
It depends on the current bottleneck; threading, setup, stacking or data entry may each dominate a different plant.
ENGINEERING RESPONSE
Review Automation Scope
Share the material grade and strength, thickness-by-width matrix, coil dimensions, finished product, output and destination. Hongkang will identify missing data before preparing a technical route.
