Foundation Requirements for a CTL Line
A cut-to-length line foundation transfers static and dynamic loads, maintains alignment and provides safe pits, anchors and service access. Civil design must use supplier load data together with a qualified local engineer’s soil and building assessment.
Get Foundation InputsDECISION FRAME
What this page is designed to resolve
This page supports Pre-purchase engineering research. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes CTL foundation drawing. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- Start with verified civil inputs
- Control levels and datums
- Pits are more than empty volume
- Grouting and final anchoring
- Handover records support installation
ENGINEERING DETAIL
Foundation Requirements for a CTL Line: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
Start with verified civil inputs
The equipment supplier provides footprints, masses, centers of gravity, anchor locations, pit geometry and relevant static or dynamic loads. The local engineer validates soil bearing, slab condition, reinforcement and code requirements.
Control levels and datums
A common installation datum coordinates decoiler, leveler, shear, conveyors and stacker. Embedded plates, anchor sleeves and pit edges need surveyed positions and tolerances before concrete cures.
Pits are more than empty volume
Loop or coil-car pits may need drainage, ventilation, lighting, guarded access, oil containment and removable covers. Groundwater and cleaning methods should be addressed in the civil plan.
Grouting and final anchoring
Equipment is placed, leveled and aligned before approved grout and final torque lock the machine. The procedure should preserve access for verification and avoid pulling frames out of alignment.
Handover records support installation
Survey reports, concrete strength, reinforcement changes, embedded-item checks and as-built drawings reduce disputes when installation begins.
ENGINEERING INPUTS
Data required for a defensible cut to length line foundation
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Geotechnical and slab assessment | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Equipment load and anchor drawings | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Common datum and survey tolerances | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Pit drainage and guarded access | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Embedded items and cable routes | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Grout and anchoring procedure | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| As-built civil records | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.
PROJECT-SOURCED VISUAL EVIDENCE

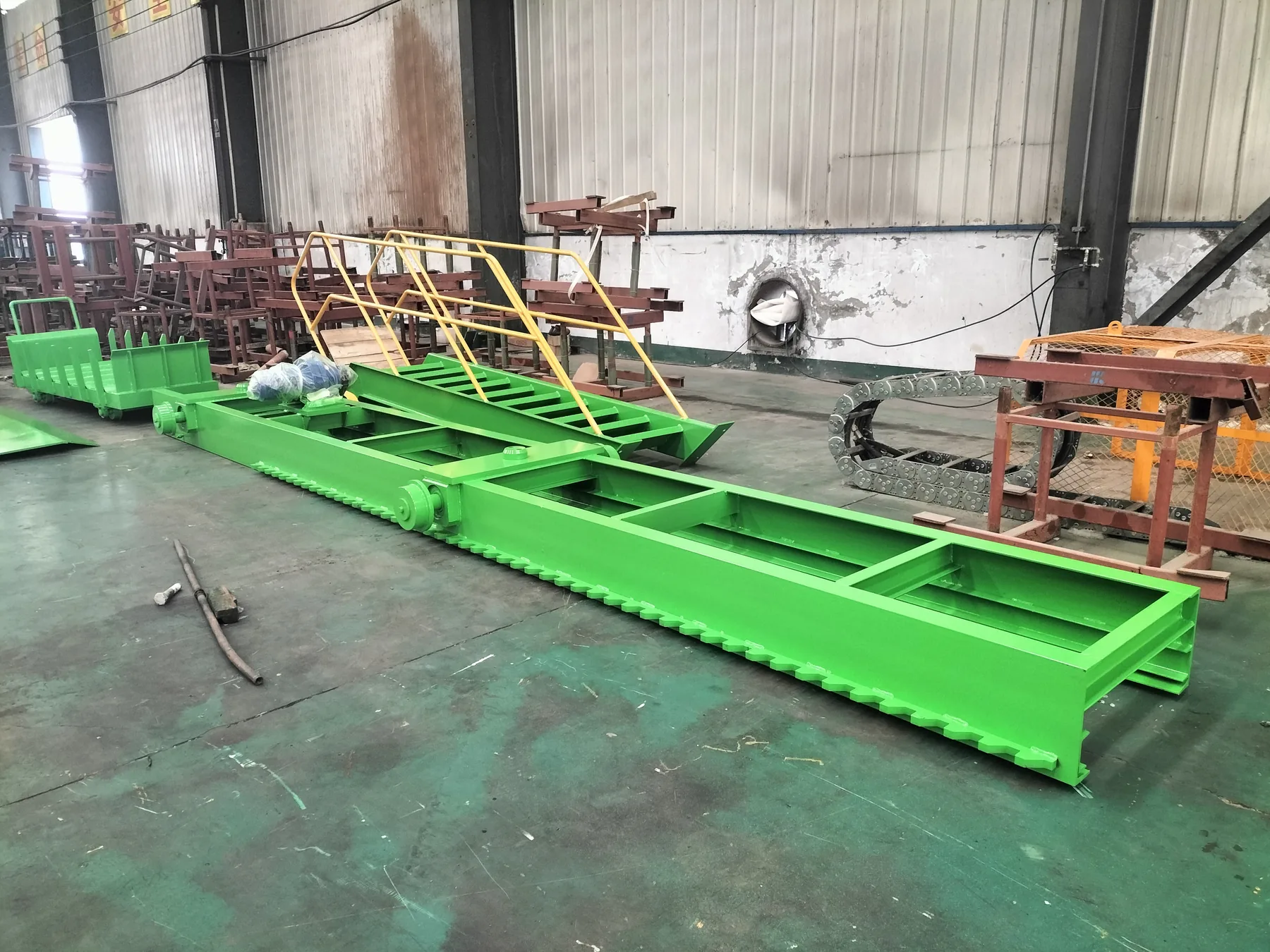

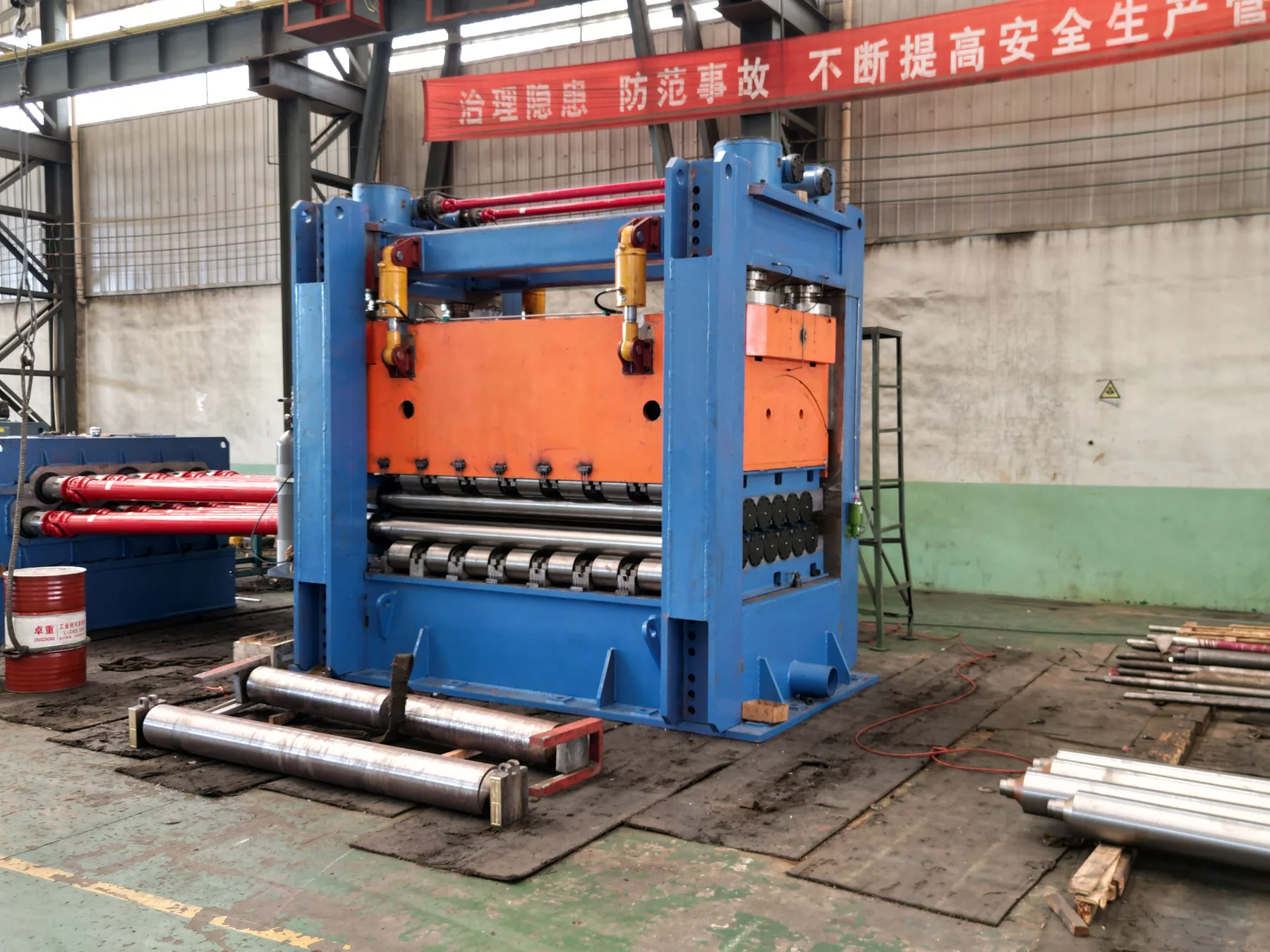

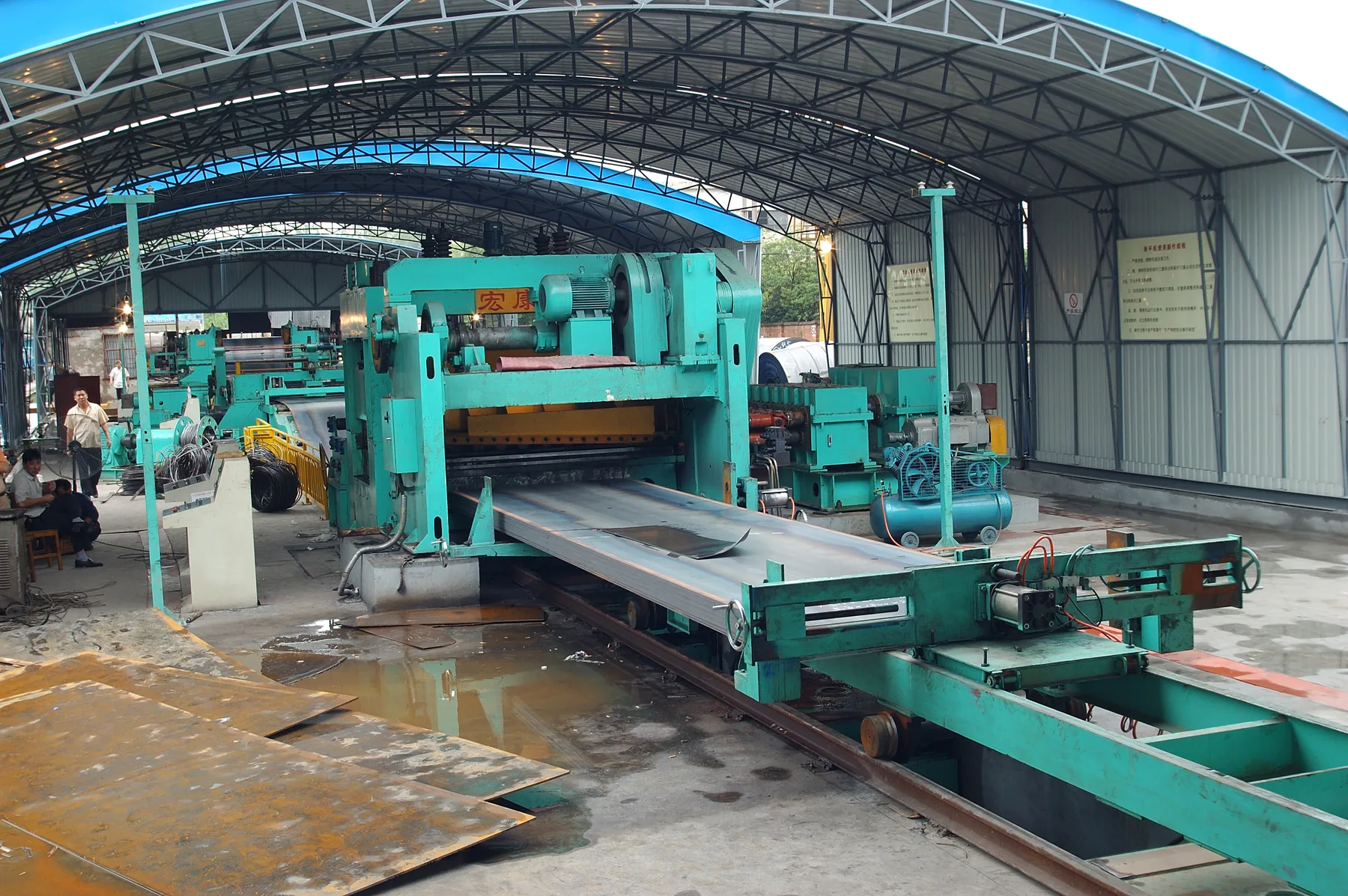

Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about cut to length line foundation
Does Hongkang design the complete building foundation?
Hongkang supplies equipment civil inputs; a qualified local civil engineer remains responsible for the site-specific design unless the contract states otherwise.
Can installation start before concrete reaches strength?
No. The civil engineer and grout supplier should confirm the required curing and strength.
What if anchors are misplaced?
Survey the deviation before equipment placement and agree an engineered correction; do not force the machine into position.
Why do heavy lines need alignment checks after grouting?
Settlement, grout shrinkage or anchor tightening can shift the equipment centerline.
