Steel Plate Leveling Machine
A plate leveling machine corrects flatness after cutting, thermal processing or individual-plate handling. Plate size, strength, temperature, initial distortion and the final measurement standard define the roll system and installed capacity.
Get Leveler RecommendationDECISION FRAME
What this page is designed to resolve
This page supports Equipment purchase and technical comparison. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes steel sheet leveling machine, plate leveling machine, hydraulic plate leveler, steel plate straightening machine, plate leveler. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- Plate leveling is not coil leveling with a different name
- Capacity is a thickness-width-strength relationship
- Roll support and adjustment resolution
- Reversible operation and recipe control
- Measure after the plate is stable
ENGINEERING DETAIL
Steel Plate Leveling Machine: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
Plate leveling is not coil leveling with a different name
Individual plates may arrive with crossbow, edge wave, center buckle, local waviness or thermal distortion. Entry guidance, roll opening, reversible passes and plate support must suit discrete products without damaging leading or trailing edges.
Capacity is a thickness-width-strength relationship
The machine should be checked at explicit duty points rather than independent maximum values. Thick narrow plate and thinner full-width plate create different roll forces, drive loads and deflection patterns.
Roll support and adjustment resolution
A rigid frame, supported work rolls and controlled upper-beam position create the repeatable gap needed for flatness correction. Sectional adjustment may be considered where the product and flatness requirement justify it.
Reversible operation and recipe control
Some plate programs benefit from multiple forward and reverse passes. Stored recipes provide a starting point, but operators still need clear feedback and safe procedures for unusually distorted material.
Measure after the plate is stable
Acceptance must state plate support, temperature, sample area, straightedge or instrument method and permissible deviation. Measurements taken on a moving conveyor or hot plate may not represent the delivered result.
ENGINEERING INPUTS
Data required for a defensible steel plate leveling machine
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Plate grade and temperature | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Thickness, width and length matrix | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Initial distortion examples | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Final flatness standard | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Forward-only or reversible process | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Surface marking limits | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Loading, support and discharge method | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.

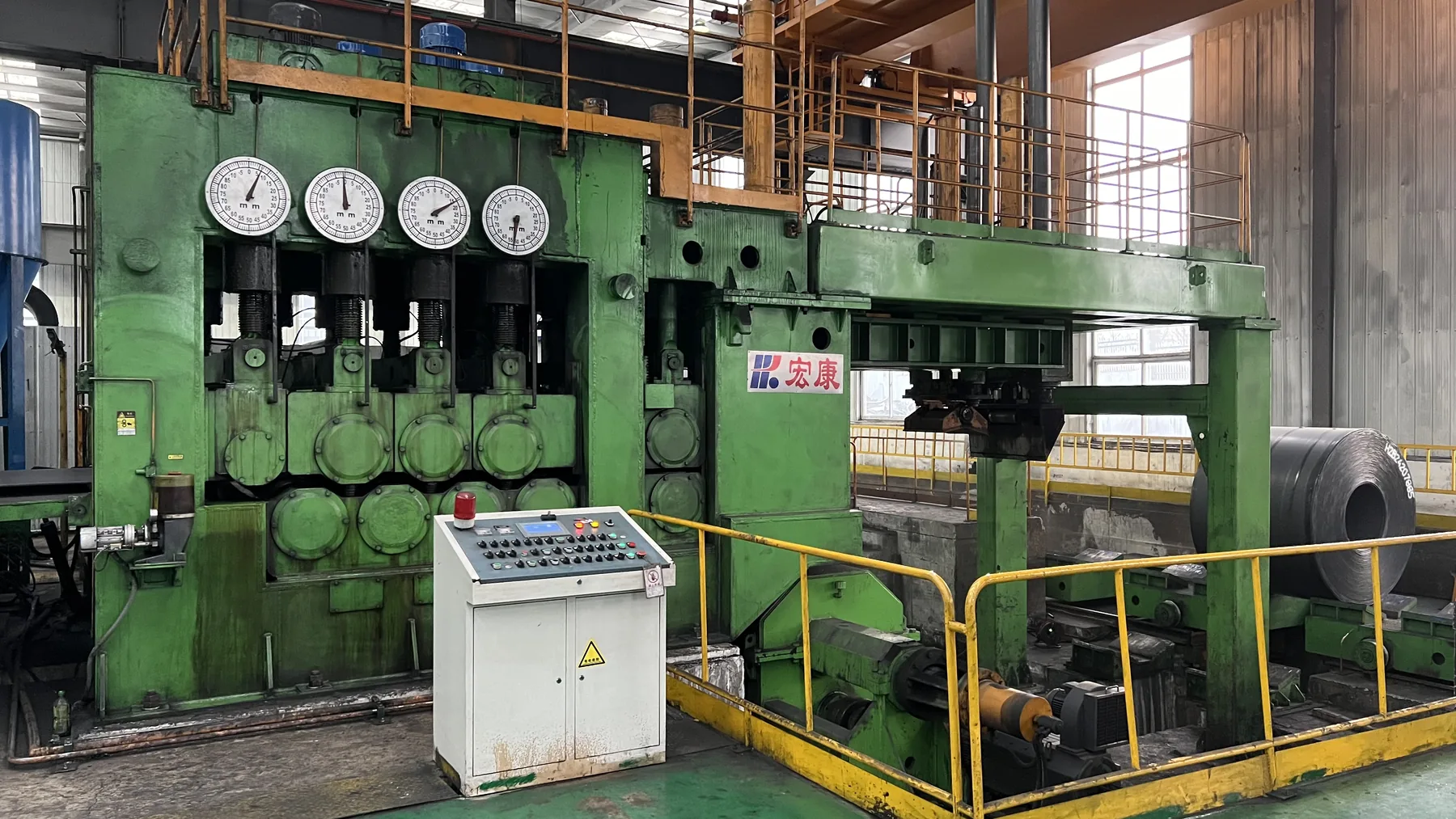

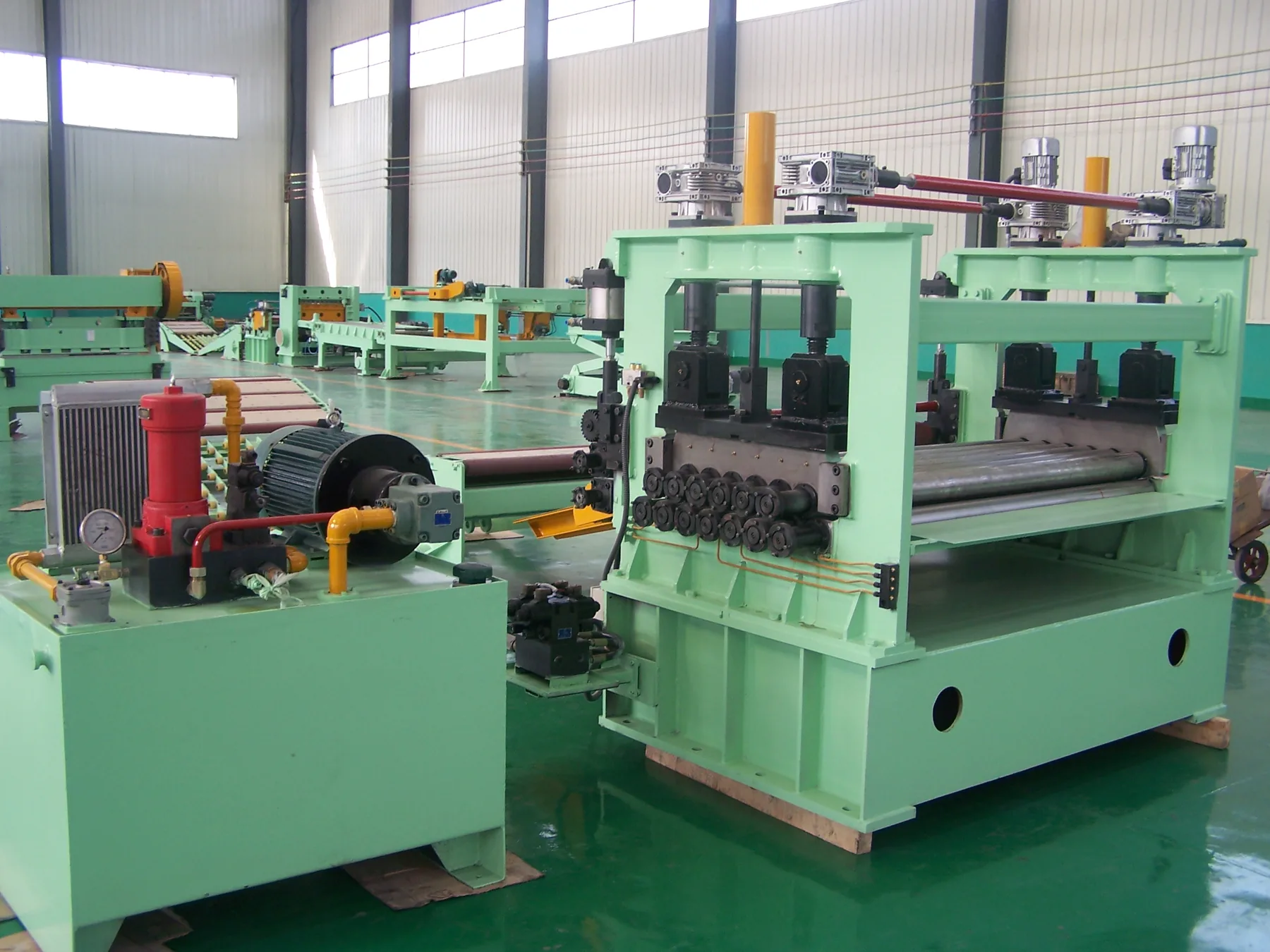

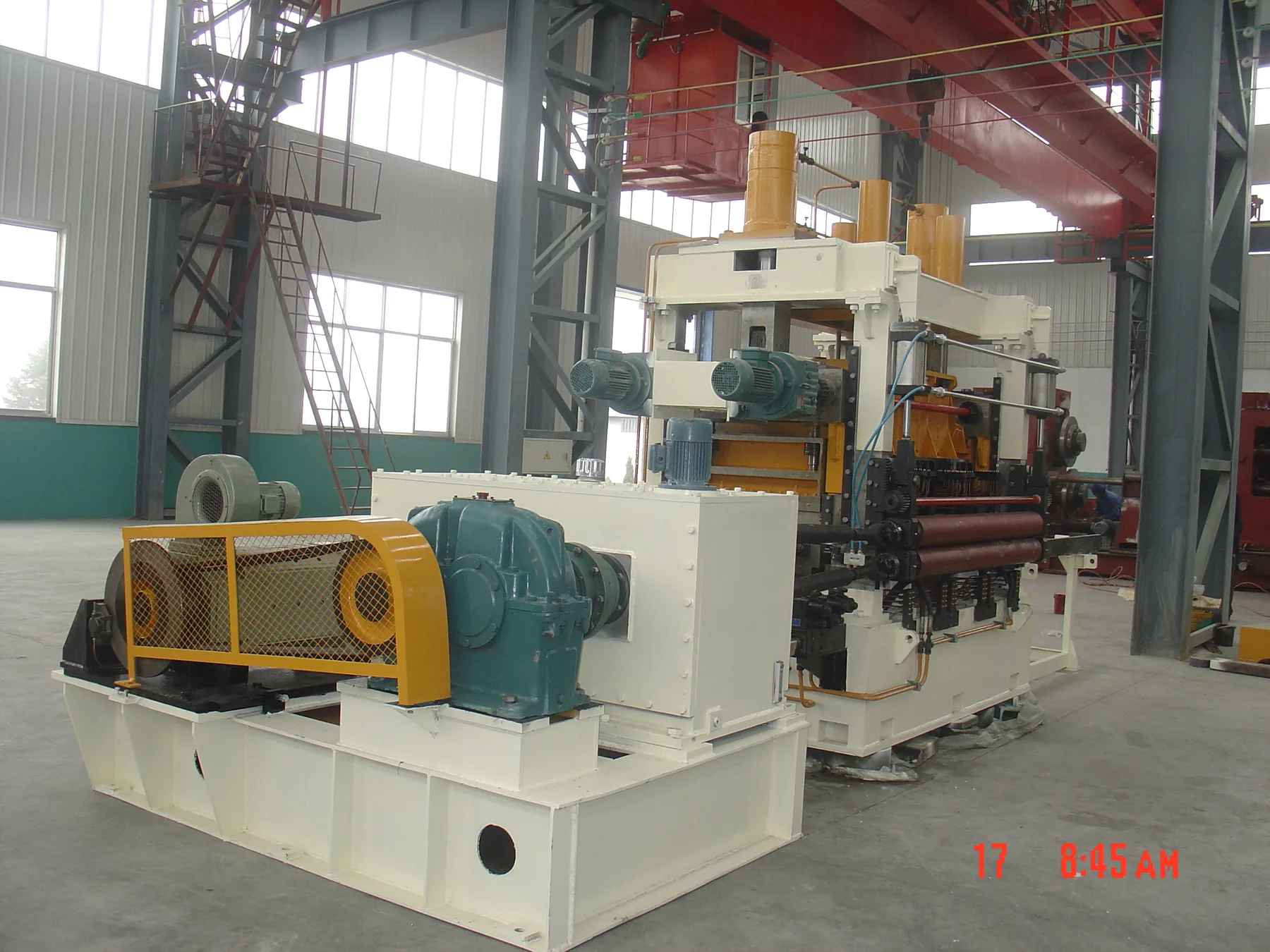

PROJECT-SOURCED VISUAL EVIDENCE
Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about steel plate leveling machine
Can a plate leveler process cut sheets from a CTL line?
Yes, if plate dimensions, strength, feed condition and support are within the machine envelope.
How many passes are required?
That depends on initial shape, material properties and the target. The procedure should be established with representative trials.
Can it level thermally cut plate?
It can be designed for that application, but temperature, local hardening, scale and distortion severity must be disclosed.
What causes surface marks?
Dirty or damaged rolls, trapped scale, excessive local pressure and poor plate support are common causes.
