How to Level Thick Steel Coil
Leveling thick steel coil requires sufficient plastic bending, supported rolls and controlled entry and exit conditions. The method is set by thickness, width, strength, incoming curvature and the flatness standard—not by roll pressure alone.
Discuss Flatness TargetDECISION FRAME
What this page is designed to resolve
This page supports Pre-purchase engineering research. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes heavy gauge leveling, roller leveler. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- Understand the incoming defect
- Set the duty point
- Build a repeatable setup
- Check machine and material condition
- Measure the plate correctly
ENGINEERING DETAIL
How to Level Thick Steel Coil: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
Understand the incoming defect
Coil set, crossbow, edge wave, center buckle and local shape problems have different causes. Record where the defect occurs through the coil and whether it changes with width, grade or upstream processing.
Set the duty point
Thick full-width high-strength material may control frame load, while a different product controls roll contact or traction. Use a material matrix and manufacturer limits for penetration and torque.
Build a repeatable setup
Begin from a documented recipe, thread at safe speed, adjust entry and exit penetration in controlled steps, and record the result. Large unrecorded changes make troubleshooting slow and can overload the machine.
Check machine and material condition
Dirty or damaged rolls, worn bearings, alignment error, variable thickness, crown and residual stress can imitate a setup problem. Inspect these factors before continually increasing roll force.
Measure the plate correctly
Allow the cut product to stabilize, support it as agreed and use the stated sample and measurement method. A visual judgment on a moving table is not an acceptance result.
ENGINEERING INPUTS
Data required for a defensible how to level thick steel coil
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Defect type and position in coil | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Thickness-width-strength point | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Incoming crown and residual stress | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Roll cleanliness and mechanical condition | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Entry and exit settings | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Speed and tension conditions | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Flatness sample and measurement | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.

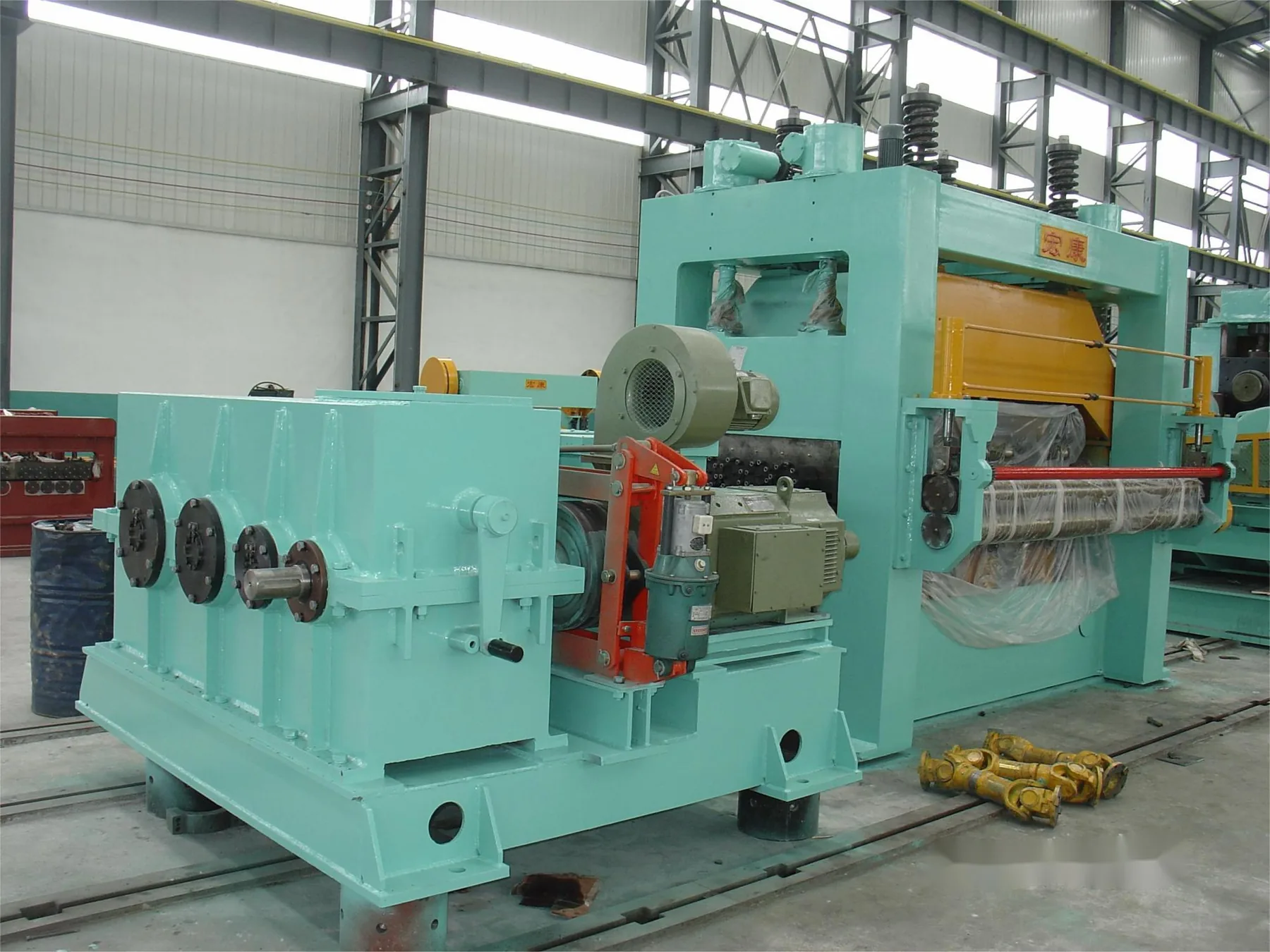

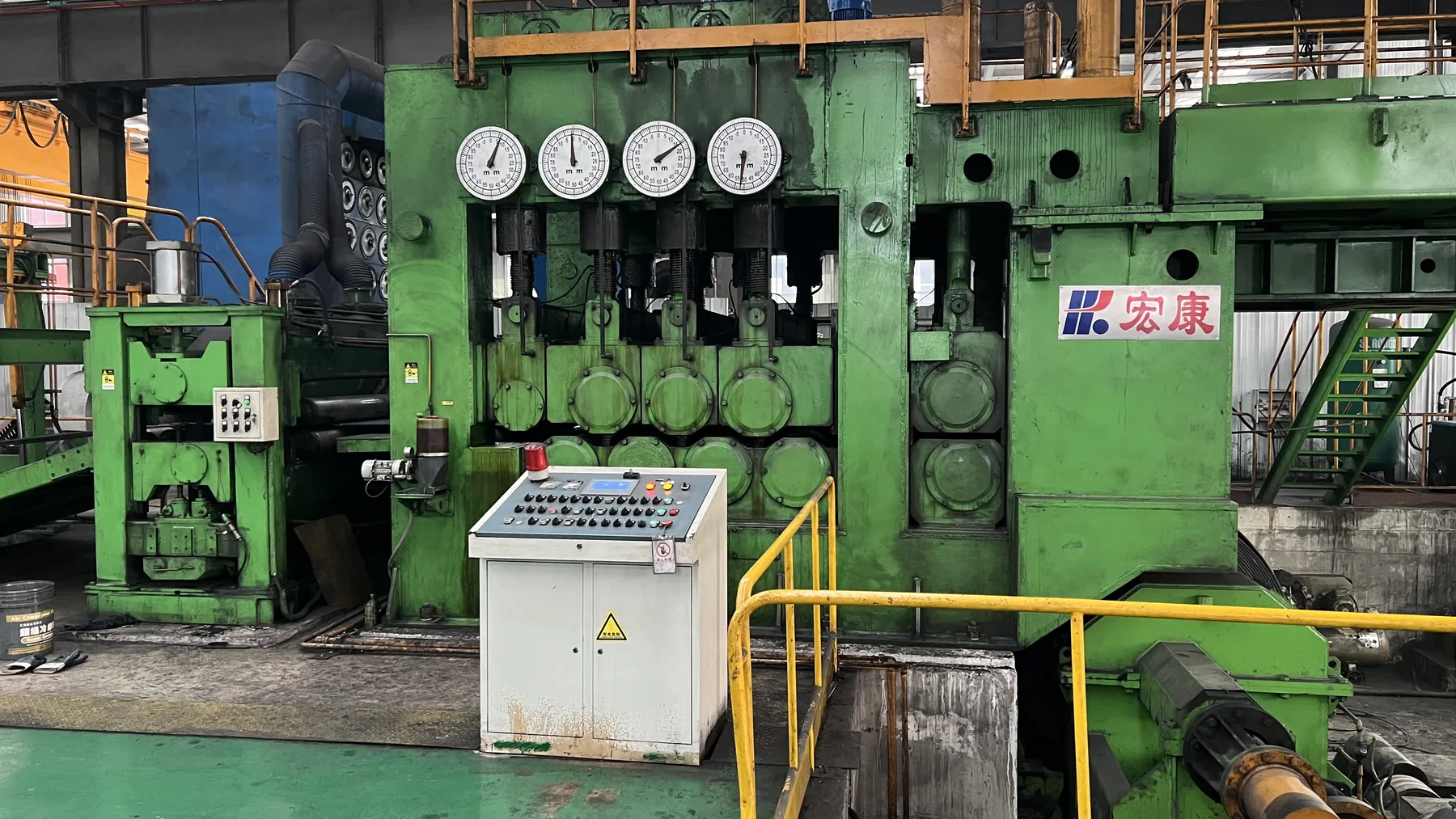

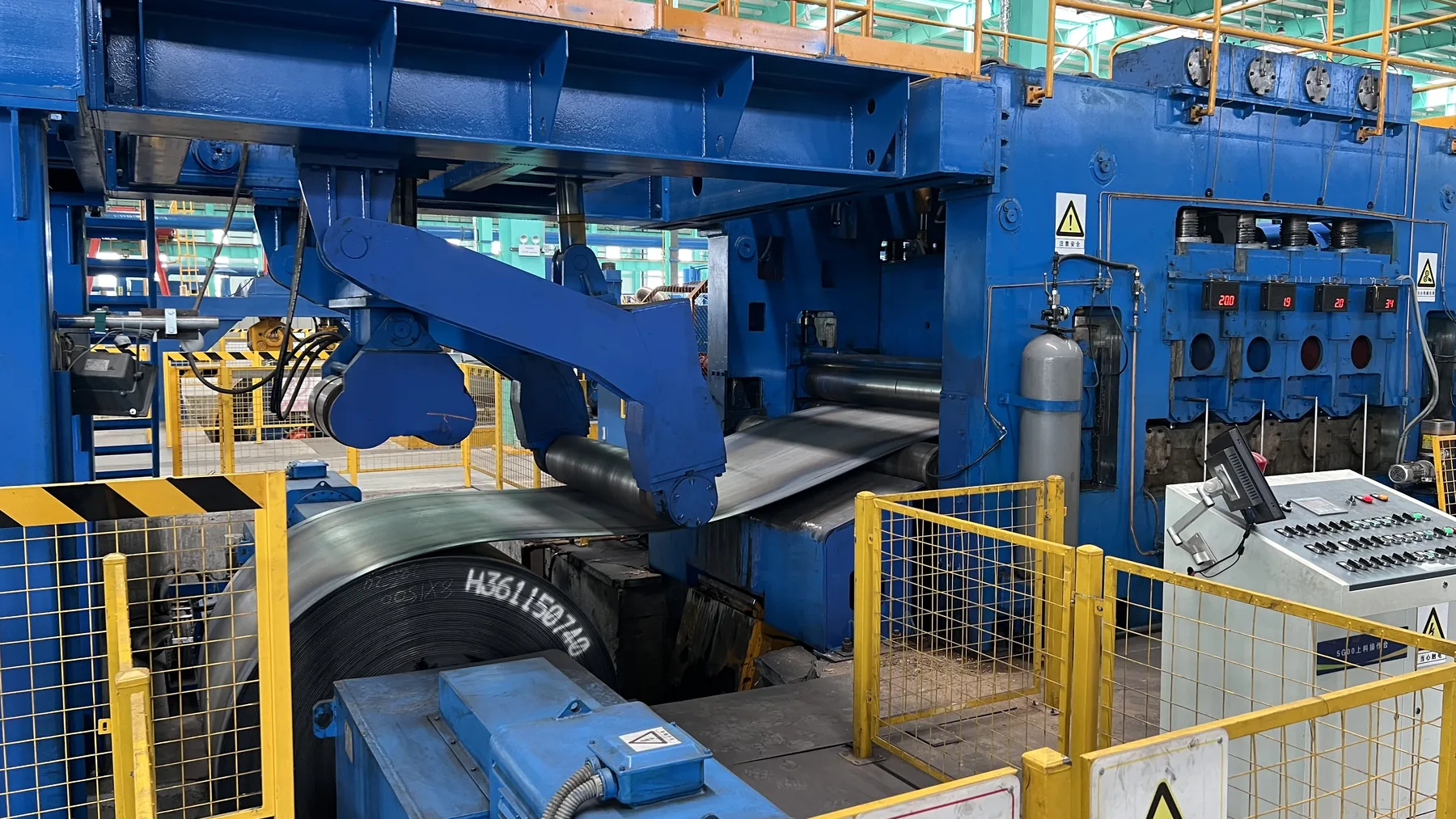

PROJECT-SOURCED VISUAL EVIDENCE
Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about how to level thick steel coil
Why does the first sheet differ from steady production?
Threading tension, coil-head shape and thermal or mechanical stabilization can change the initial condition.
Can repeated passes improve flatness?
Sometimes, but the line and handling route must be designed for the procedure and the additional cycle time understood.
Why does edge wave remain?
Material crown, roll deflection, incorrect setup or incoming residual stress may exceed the available correction.
When should engineering support be requested?
When stable recipes stop working, loads approach limits, defects change unexpectedly or mechanical condition is uncertain.
ENGINEERING RESPONSE
Discuss Flatness Target
Share the material grade and strength, thickness-by-width matrix, coil dimensions, finished product, output and destination. Hongkang will identify missing data before preparing a technical route.
