HONGKANG COIL PROCESSING ENGINEERING
How to Choose a Coil Slitting Line
Choosing a coil slitting line requires the parent-coil matrix and every important slit pattern, followed by edge-quality, tension, recoiling, automation, layout and acceptance requirements. Maximum thickness alone cannot describe the job.
Download Slitting ChecklistDECISION FRAME
What this page is designed to resolve
This page supports Pre-purchase engineering research. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes slitter selection guide, coil slitting machine selection. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- List actual slit patterns
- Define measurable strip quality
- Select tooling and tension around the product
- Compare changeover and lifecycle
- Build a representative FAT
ENGINEERING DETAIL
How to Choose a Coil Slitting Line: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
List actual slit patterns
For each representative job, give material, thickness, parent width, finished widths, quantities, trims, coil weight and required output. Mark the maximum simultaneous strip count and minimum finished width.
Define measurable strip quality
Width tolerance, burr method, camber sample, edge damage, surface marks, telescoping, dishing and winding density create a common acceptance language.
Select tooling and tension around the product
Arbor geometry, knives, spacers, scrap system, loop control, tension device, separators and recoiler must work as one route. Surface-sensitive and heavy-gauge products may require different solutions.
Compare changeover and lifecycle
Review tooling handling, recipe control, cleaning, knife maintenance, spare parts, operator skill and service access. The fastest nominal line may not deliver the highest saleable output.
Build a representative FAT
Run a commercial slit pattern, measure strips across the width, inspect edges and coil build, demonstrate coil removal and record settings for repeatability.
ENGINEERING INPUTS
Data required for a defensible how to choose a slitting line
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Parent-coil matrix | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Representative slit patterns | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Strip-quality criteria | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Tooling and trim handling | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Tension and recoiler method | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Changeover and automation | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| FAT and service boundary | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.

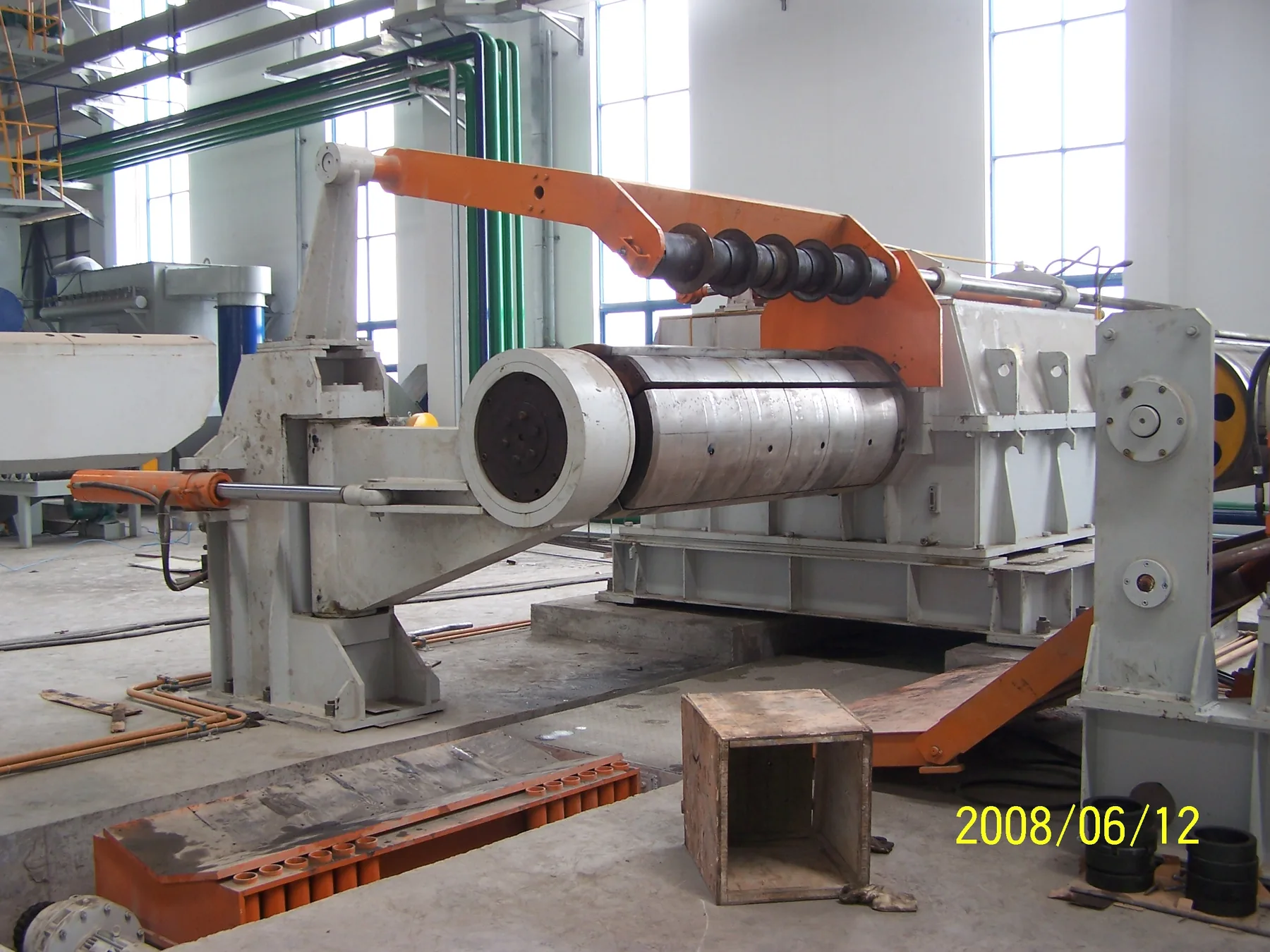

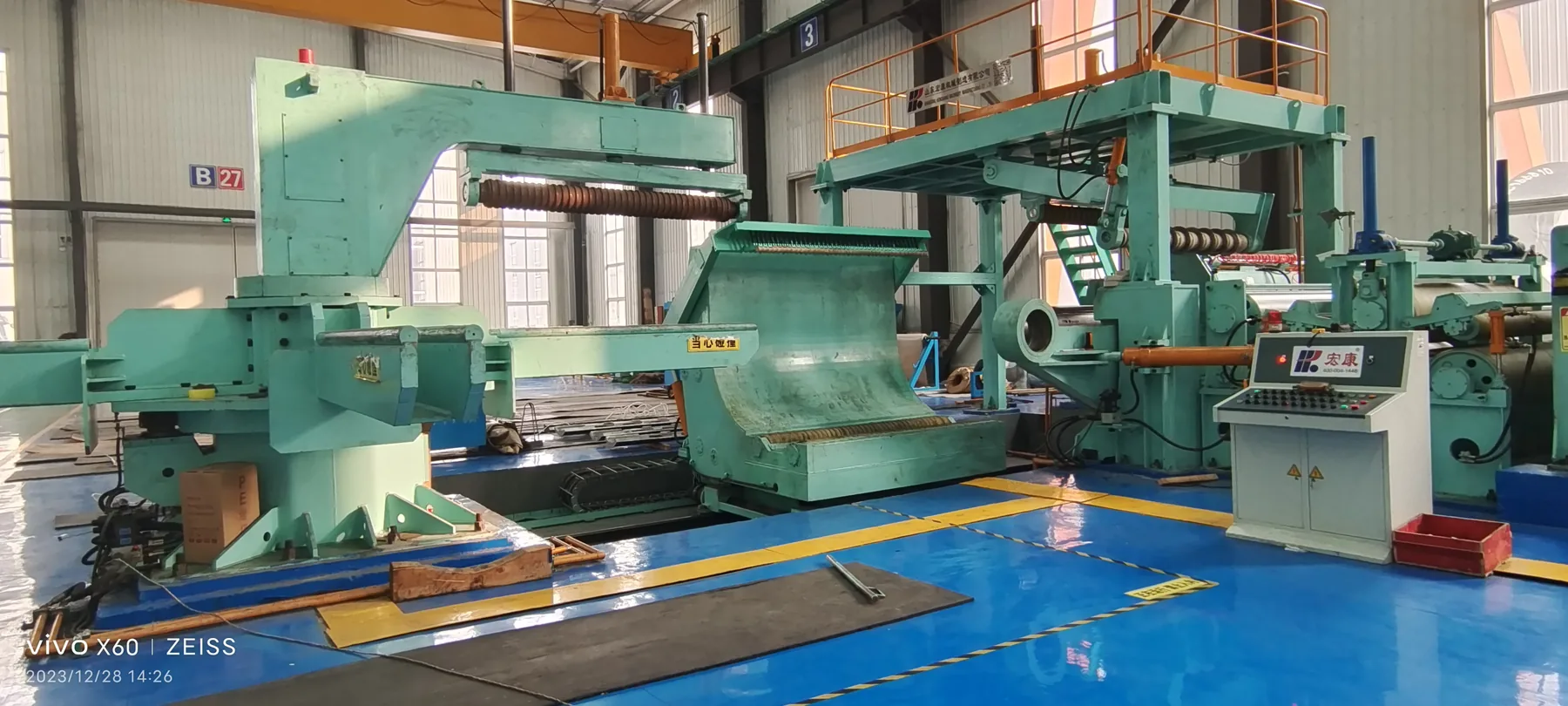

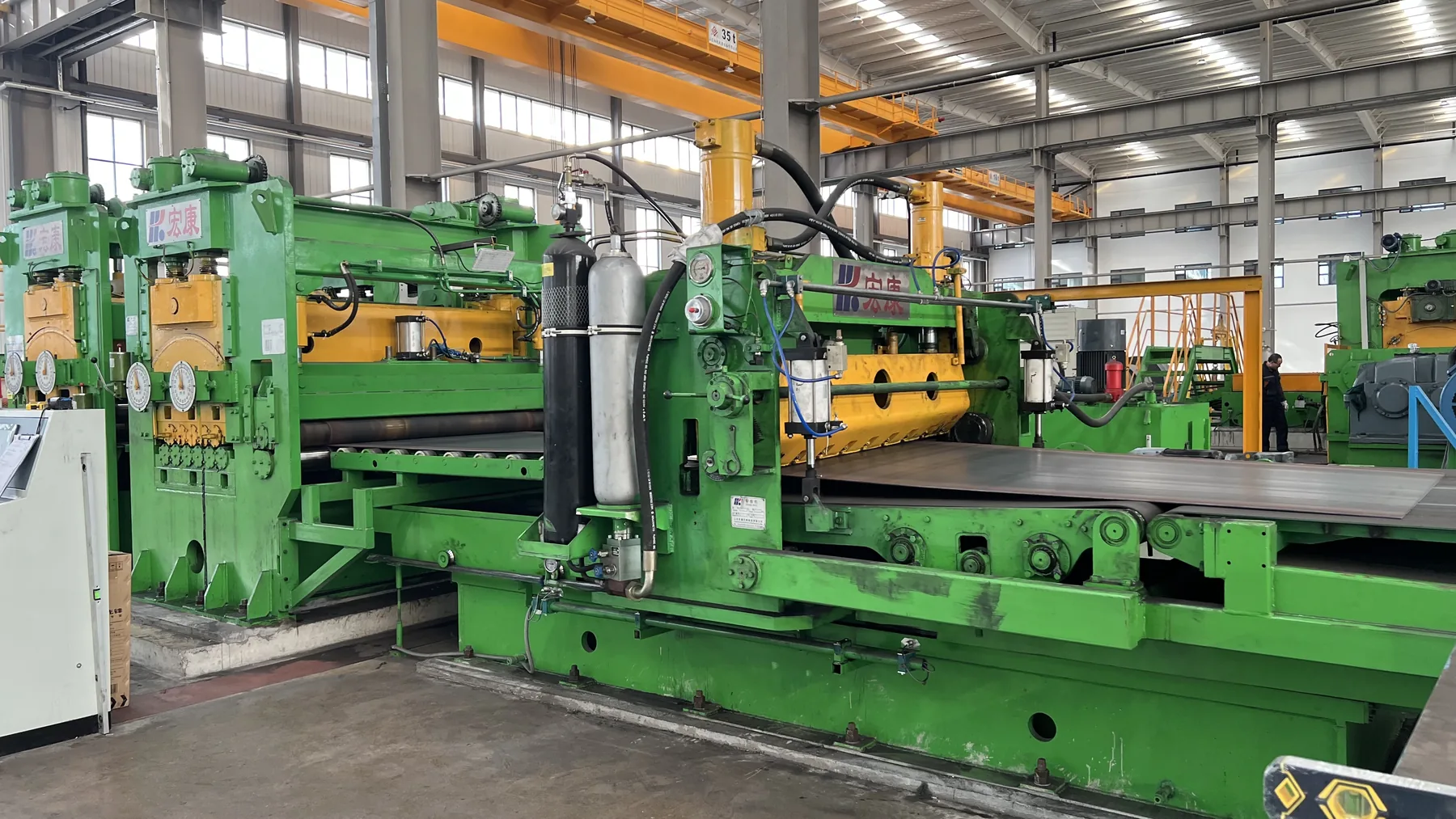

PROJECT-SOURCED VISUAL EVIDENCE
Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about how to choose a slitting line
What is the first document to prepare?
A slit-program table linking parent coil, material and every finished strip.
How many strips can one line produce?
It depends on gauge, total width, shaft load, tooling, tension and the specified minimum strip width.
How should proposals be compared?
Use the same duty points, quality criteria, tooling, automation, scope and acceptance plan.
ENGINEERING RESPONSE
Download Slitting Checklist
Share the material grade and strength, thickness-by-width matrix, coil dimensions, finished product, output and destination. Hongkang will identify missing data before preparing a technical route.
