Steel Coil Slitting Process
The coil slitting process divides a master coil longitudinally and rewinds the strips into finished coils. Stable guiding, precise tooling, controlled looping, balanced tension and aligned recoiling determine the usable product.
See Slitting LinesDECISION FRAME
What this page is designed to resolve
This page supports Pre-purchase engineering research. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes what is coil slitting. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- Prepare and center the parent coil
- Create the strip pattern
- Separate process speed from winding tension
- Rewind and inspect
ENGINEERING DETAIL
Steel Coil Slitting Process: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
Prepare and center the parent coil
Coil handling, head preparation and entry guides establish safe threading and a consistent reference. Damaged edges, telescoping and incoming camber should be identified before they enter the tooling.
Create the strip pattern

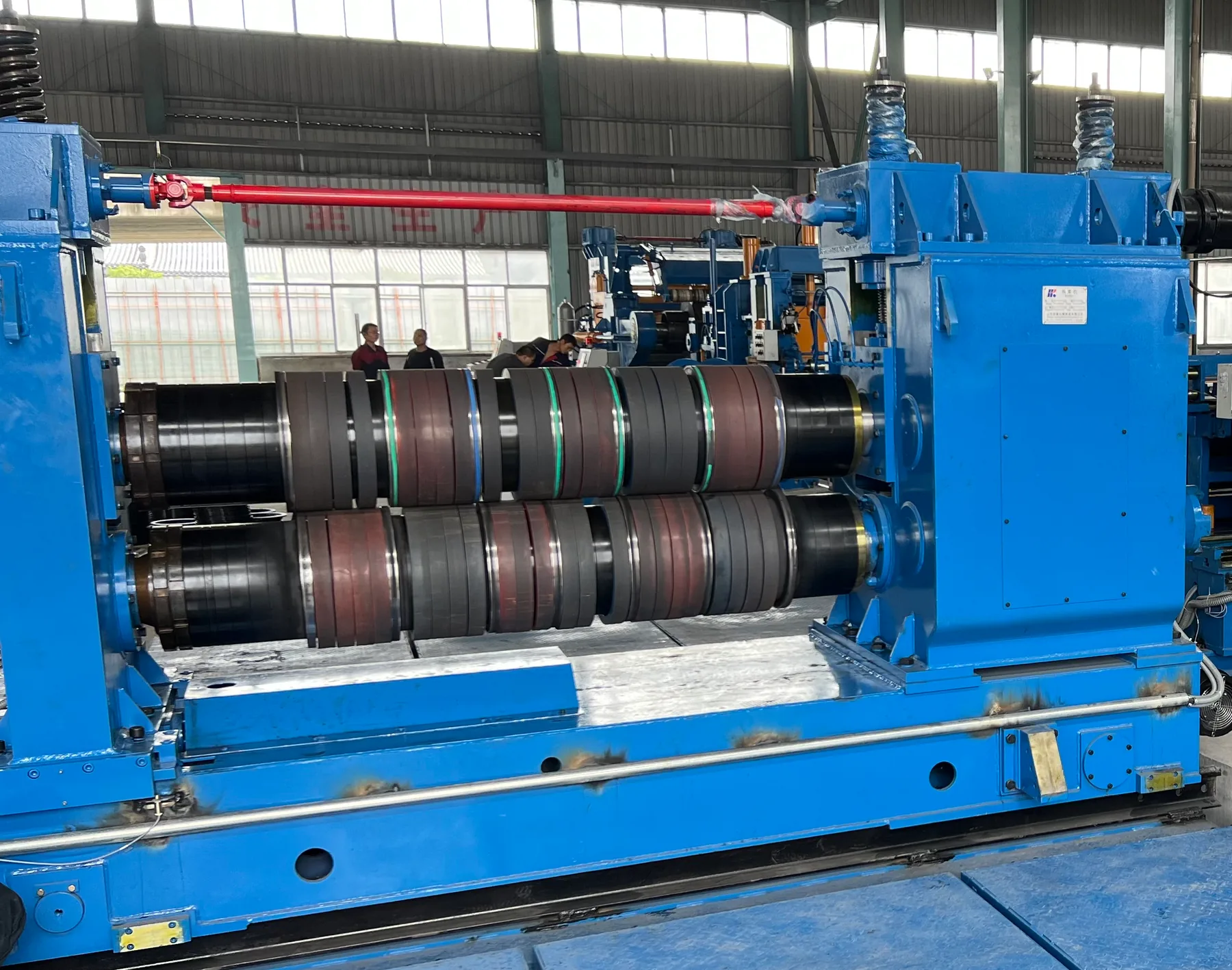

Circular knives and spacers are arranged for the required widths and trims. Clearance, overlap, arbor runout and clamping affect width, burr and knife life.
Separate process speed from winding tension
A loop or tension-control section allows the slitter and recoiler to operate without transferring every disturbance. The design must prevent strip crossover and protect sensitive surfaces.
Rewind and inspect
Separators guide individual strips onto the expanding mandrel as torque builds a stable coil. Width, burr, camber, edge condition, telescoping and winding density are checked against the agreed plan.
ENGINEERING INPUTS
Data required for a defensible coil slitting process
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Parent-coil condition | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Knife and spacer plan | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Trim and scrap route | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Loop or tension method | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Separator setup | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Recoiler torque and support | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Finished-coil inspection | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.
PROJECT-SOURCED VISUAL EVIDENCE

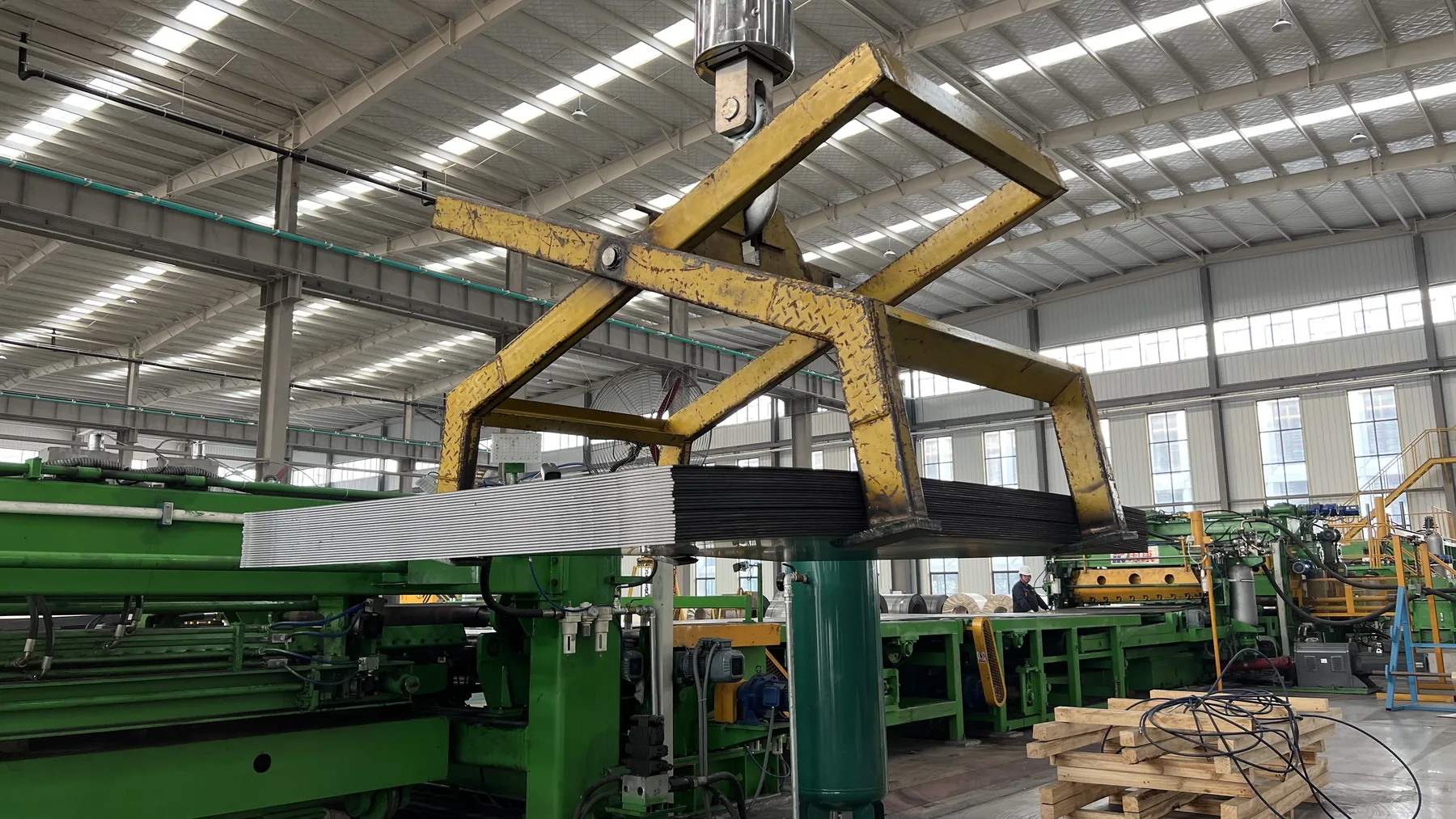

Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about coil slitting process
What is a slit pattern?
It is the combination of finished strip widths, quantities and edge trims produced from a parent coil.
Why is a loop used?
It decouples sections and supports stable speed and tension control.
What creates telescoped coils?
Unequal tension, separator errors, misalignment, unstable speed or poor incoming shape can contribute.
ENGINEERING RESPONSE
See Slitting Lines
Share the material grade and strength, thickness-by-width matrix, coil dimensions, finished product, output and destination. Hongkang will identify missing data before preparing a technical route.
