Cut-to-Length Line Layout Guide
A cut-to-length line layout must support material flow, safe maintenance, crane access, foundations, utilities and finished-product logistics. Machine length alone is not a workable plant layout.
Request Preliminary LayoutDECISION FRAME
What this page is designed to resolve
This page supports Pre-purchase engineering research. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes CTL line floor plan. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- Map the complete material path
- Separate operating and maintenance envelopes
- Coordinate cranes and lifting
- Pits, foundations and drainage
- Plan utilities and expansion
ENGINEERING DETAIL
Cut-to-Length Line Layout Guide: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
Map the complete material path
Include incoming-coil storage, coil rotation if needed, coil-car approach, processing centerline, stack discharge, packaging, scrap removal and outbound traffic. Turning radii and waiting zones affect daily flow.
Separate operating and maintenance envelopes
Doors, guards, roll removal, blade change, motor access, hydraulic service and electrical-panel clearance require permanent space. A layout that fits only during production can make maintenance unsafe or impossible.
Coordinate cranes and lifting
Crane hook height, capacity, travel, columns and approach direction must suit the heaviest coil, tooling and maintenance lift. The line should not depend on a lift path blocked by another machine.
Pits, foundations and drainage
Loop pits, coil-car trenches, anchor groups, dynamic loads and oil containment are coordinated with the civil designer. Groundwater and existing reinforcement can materially change the concept.
Plan utilities and expansion
Power, grounding, compressed air, cooling, hydraulic lines, cable routes, network and lighting need accessible paths. Space for future packing or automation should be reserved only where the business plan supports it.
ENGINEERING INPUTS
Data required for a defensible cut to length line layout
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Building dimensions and column grid | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Crane capacity and hook height | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Incoming and outgoing material routes | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Maintenance removal envelopes | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Pits, anchors and floor levels | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Power and utility routes | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Operator visibility and safe walkways | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.

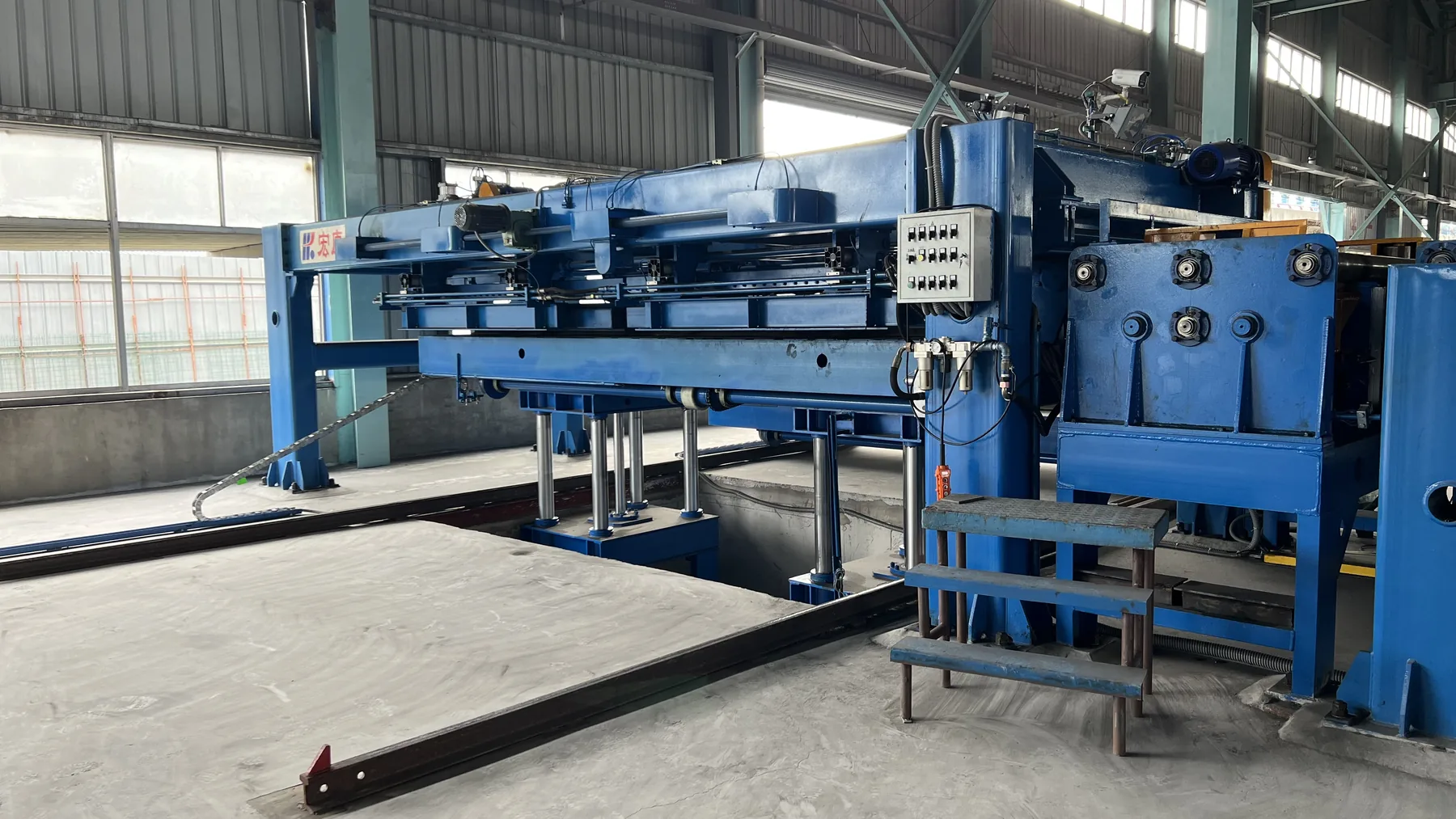

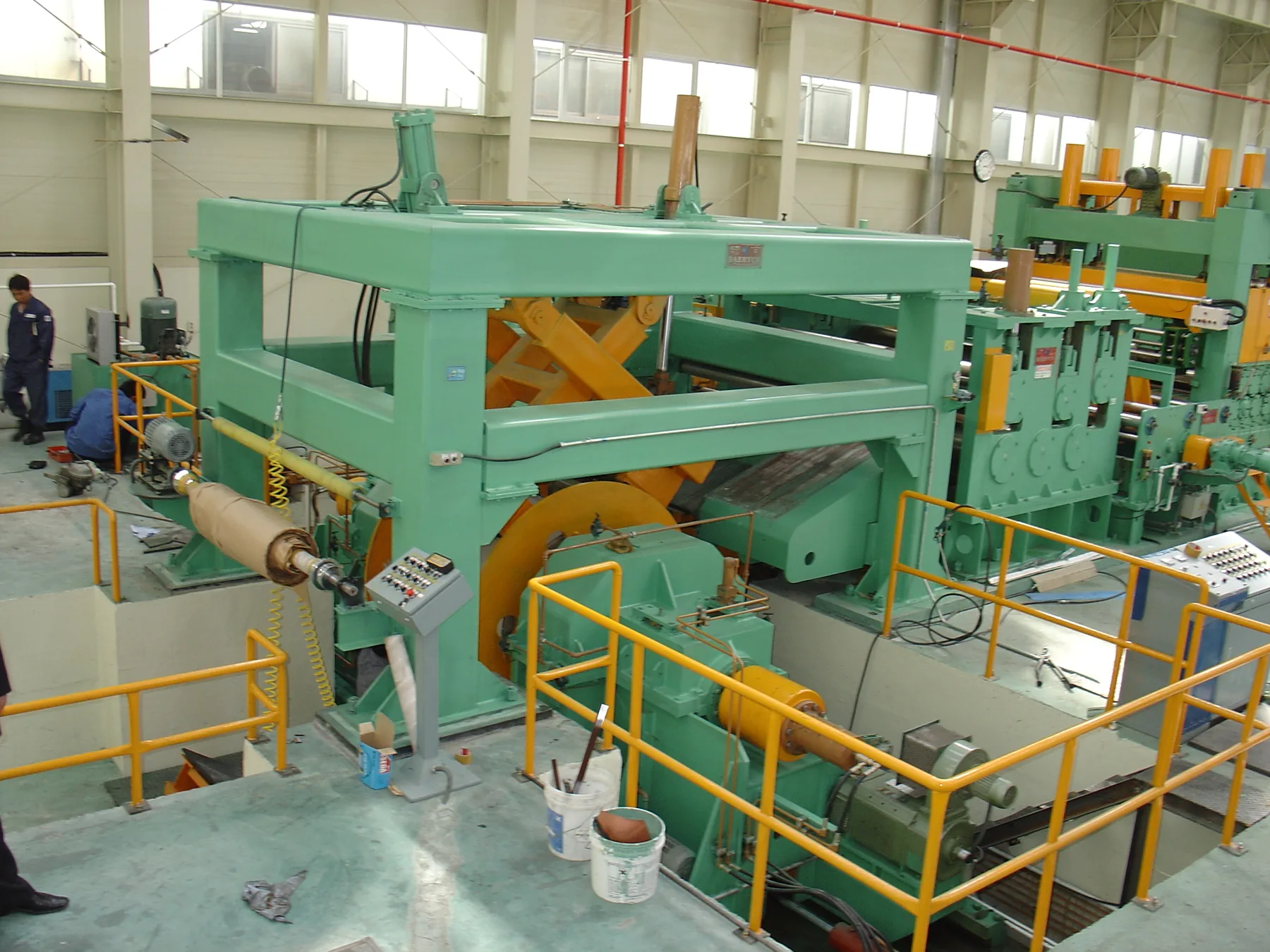

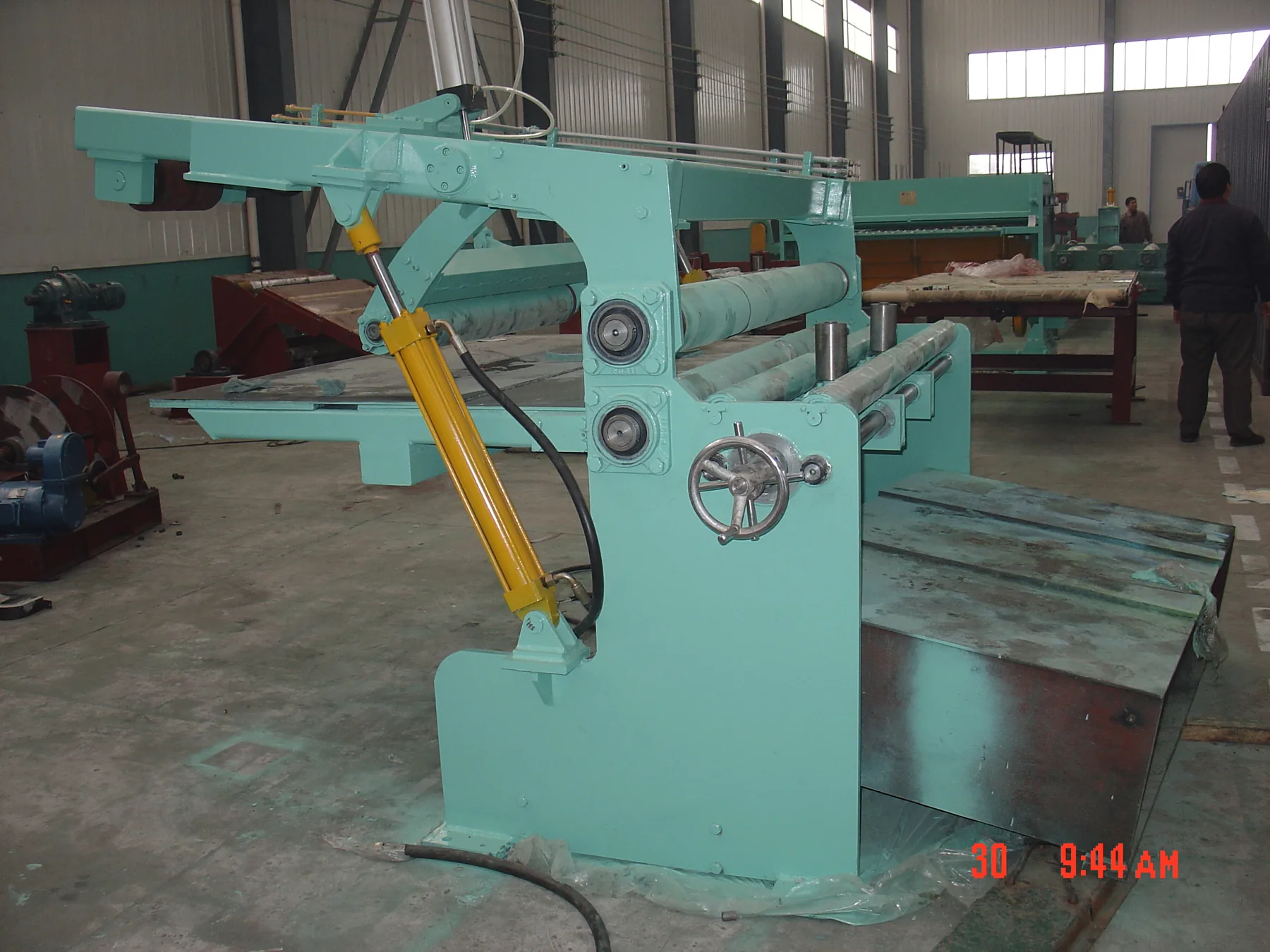

PROJECT-SOURCED VISUAL EVIDENCE
Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about cut to length line layout
How much floor space is needed?
It depends on coil size, process route, stack length, handling equipment, maintenance access and plant logistics.
Can the line direction be reversed?
Many layouts can be mirrored, but operator stations, drives, utilities and handling interfaces must be updated.
When should the civil designer join?
Before the equipment layout is frozen and well before foundation construction.
Can existing pits be reused?
Only after dimensions, condition, loads, anchors, drainage and process alignment are verified.
