Heavy Gauge Slitting Engineering Guide
Heavy-gauge coil slitting must balance very high separating force, shaft deflection, drive torque, trim handling and stored strip energy. This guide organizes the data needed to judge whether a proposed machine can run the intended slit program.
Review My Slitting ProgramDECISION FRAME
What this page is designed to resolve
This page supports Pre-purchase engineering research. It translates a broad equipment term into the inputs, limits and evidence that an engineering and purchasing team can compare. The primary evidence expected for this topic is relevant Hongkang equipment media, the stated operating matrix and measurable acceptance records.
In international specifications, related search and purchasing language includes thick steel coil slitting. These labels can overlap, so Hongkang confirms the material duty, process route and acceptance boundary behind the name.
Information architecture
- Define heavy gauge with a duty matrix
- Review slitter-head mechanics
- Control stiff trim and strip energy
- Accept the real commercial pattern
ENGINEERING DETAIL
Heavy Gauge Slitting Engineering Guide: decisions that change performance
The following sections focus on the mechanisms, interfaces and acceptance evidence that distinguish a project-ready specification from a catalogue description.
Define heavy gauge with a duty matrix
State material properties and actual thickness-width-slit combinations. Independent maximums hide whether the line can run full width, multiple strips or the strongest grade at the same time.
Review slitter-head mechanics
Arbor diameter, bearing span, housing stiffness, runout, tooling, clamping and drive train determine the ability to maintain clearance under load. Ask for data tied to the proposed duty.
Control stiff trim and strip energy
Heavy trim requires robust choppers or winders. Guides, loop control, separators and overarm support must keep stiff strips from climbing, crossing or releasing energy unpredictably.
Accept the real commercial pattern
FAT should reproduce a representative heavy slit pattern and measure width, burr and camber, then inspect winding and safe coil removal. A single light trial is incomplete evidence.
ENGINEERING INPUTS
Data required for a defensible heavy gauge slitting challenges
Use this checklist to keep technical offers comparable. Each item should be linked to a normal production condition, a maximum-duty condition or an explicit acceptance test.
| Input | Why it changes the design | How to document it |
|---|---|---|
| Material strength certificates | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Maximum-duty slit pattern | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Shaft and bearing arrangement | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
| Knife tooling specification | It affects interfaces, changeover, operator workload and safe access. | Add it to the layout, responsibility matrix or FAT protocol. |
| Drive and service factor | It defines the force, torque, geometry or handling boundary used to size the equipment. | Provide a material certificate, product matrix or marked drawing. |
| Trim and tension system | It separates the normal production range from an occasional maximum-duty point. | List representative products and annual or shift volume. |
| Heavy-product FAT plan | It turns a general quality statement into a repeatable factory and site test. | State the sample, instrument, support condition and permissible result. |
FROM OFFER TO ACCEPTANCE
How Hongkang converts the requirement into accountable scope
Confirm the duty matrix
Engineering checks the normal and limiting combinations of material, size, coil condition and finished product. Conflicts are clarified before capacity is promised.
Freeze process and interfaces
The technical agreement names equipment boundaries, utilities, controls, plant responsibilities, applicable standards and documentation.
Manufacture with records
Relevant material, fabrication, machining, assembly and purchased-component records follow the project inspection plan.
Test representative performance
FAT uses agreed material and measurements. Open items are recorded, corrected and verified before shipment release.
Install and transfer knowledge
Site alignment, utilities, safety functions, material trials, operator training and spare-parts handover support the path to production.

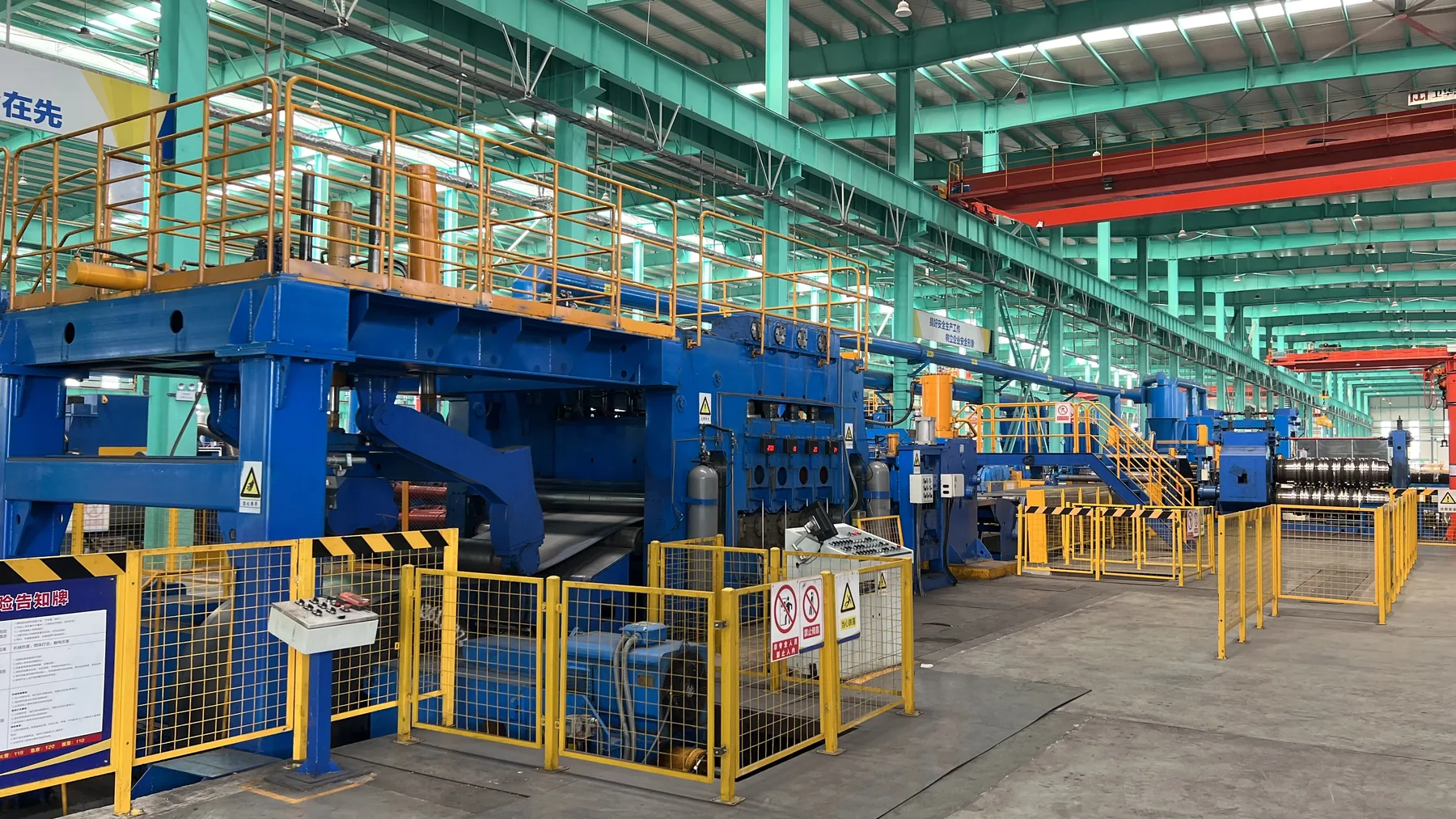

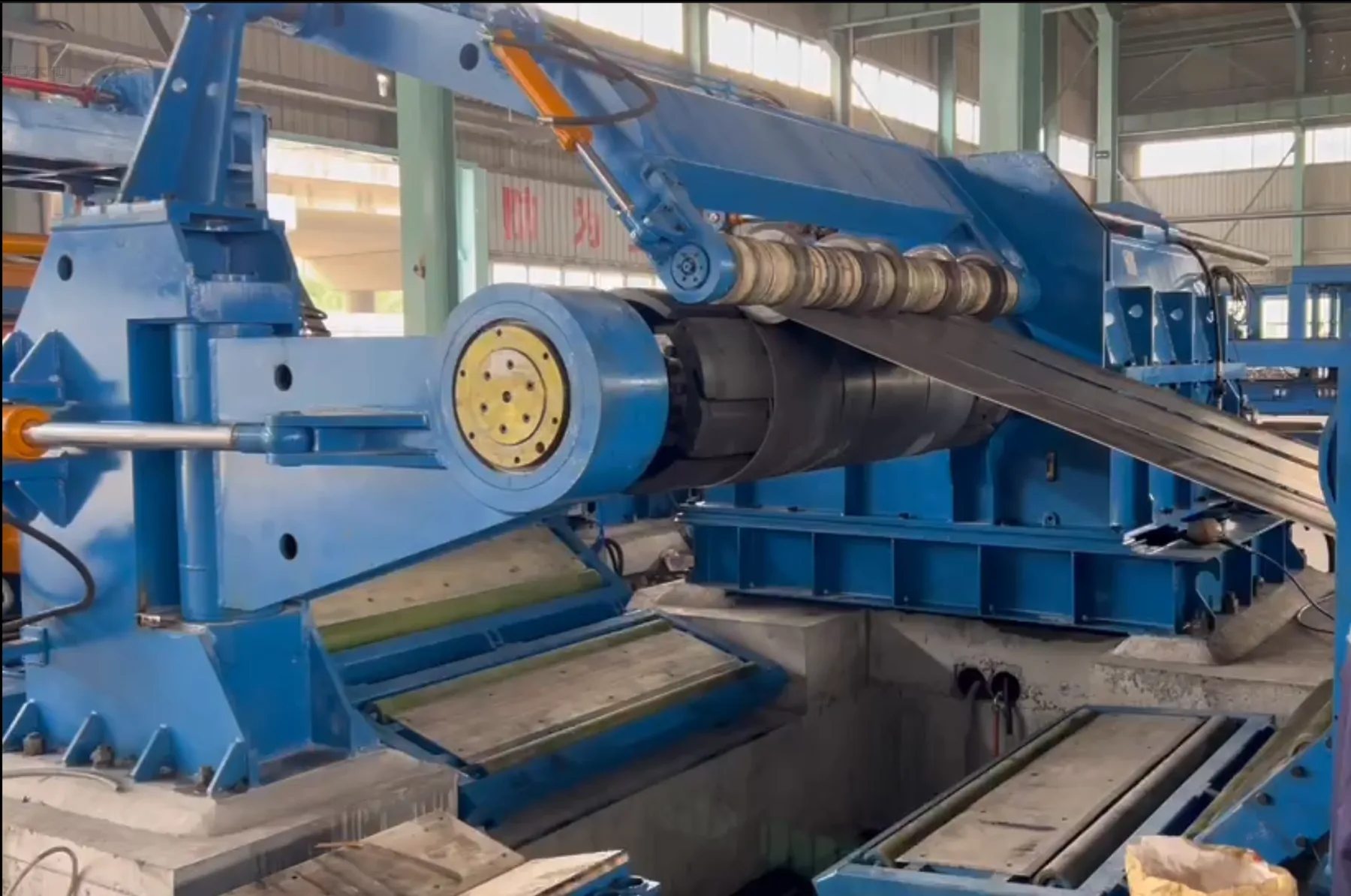

PROJECT-SOURCED VISUAL EVIDENCE
Manufacturing and equipment views selected for this topic
Every photograph assigned to this page is drawn from the supplied Hongkang product and project library. The rebuild uses a unique source image once across the website, matches it to the process described and removes embedded metadata before upload.
TECHNICAL FAQ
Questions buyers ask about heavy gauge slitting challenges
Is maximum thickness enough to size a heavy slitter?
No. Width, strength, strip count, finished width and recoiler duty are also essential.
Why does knife clearance vary?
Material grade, thickness, edge target and tooling condition change the suitable setting.
Can heavy strips be packed automatically?
Automation is possible, but strip mass, coil geometry, throughput and safe handling must justify the system.
ENGINEERING RESPONSE
Review My Slitting Program
Share the material grade and strength, thickness-by-width matrix, coil dimensions, finished product, output and destination. Hongkang will identify missing data before preparing a technical route.
